Compact. Precise. Versatile.

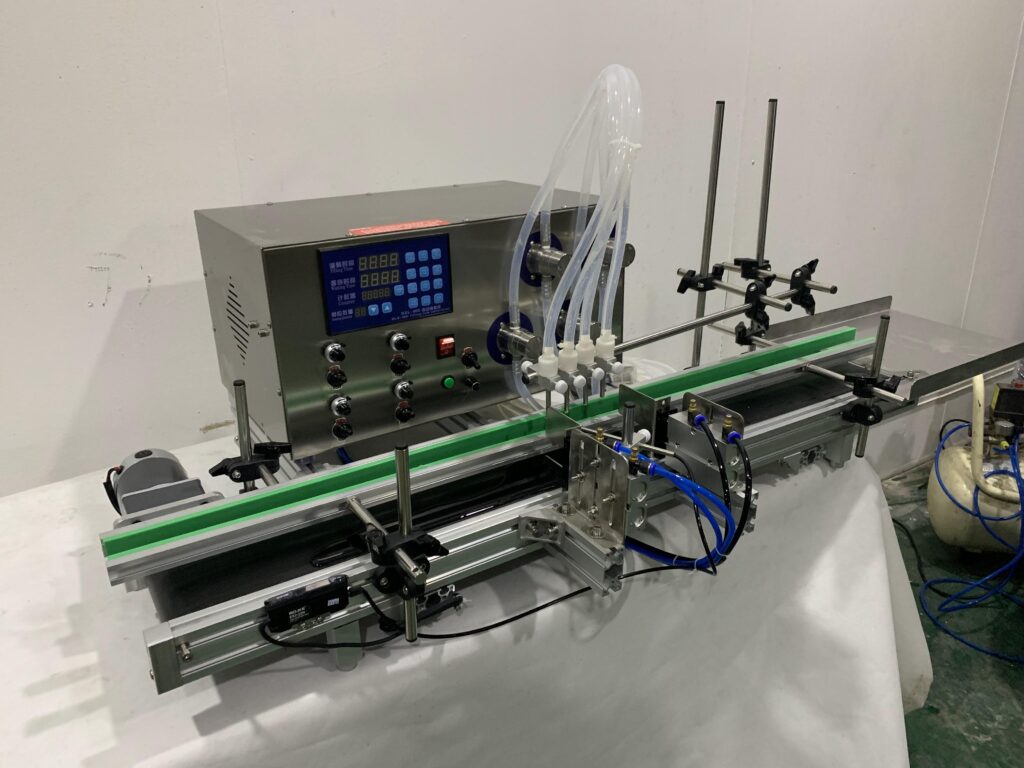

Our 4-head desktop automatic filling machine is engineered for low-to-medium volume production lines where space is at a premium but accuracy and efficiency cannot be compromised. Powered by corrosion-resistant magnetic gear pumps, this system delivers exceptional dosing consistency for a wide range of liquids—from aqueous solutions and oils to mild chemicals and cosmetics.
Key Features
- 4 Independent Filling Heads – Simultaneous or sequential operation, boosting throughput up to 4× faster than single‑nozzle systems while maintaining individual nozzle control.
- Magnetic Pump Drive – Leak‑free, seal‑less design reduces maintenance, eliminates product contamination, and enables gentle handling of shear‑sensitive fluids.
- Desktop Footprint – Compact construction fits easily on any workbench or glovebox, ideal for R&D labs, pilot plants, and small-batch production.
- Automatic Cycle Control – Programmable fill volume, dwell time, and nozzle retract speed via an intuitive HMI touchscreen. Store up to 50 recipes for quick changeovers.
- High Accuracy – Dosing precision of ±0.5% or better, with adjustable flow rates from 0.5 to 500 mL per head (customizable range available).
- Bottle‑Nozzle Synchronization – Optional conveyor or indexing turntable integration for automatic container positioning (standalone manual loading also supported).
Technical Specifications (Typical)
| Parameter | Value |
|---|---|
| Number of nozzles | 4 |
| Filling range per nozzle | 0.5 – 500 mL (optional up to 2 L) |
| Accuracy | ±0.5% of set volume |
| Pump type | Magnetic gear pump (316SS / PTFE / ceramic) |
| Max viscosity | ≤ 3000 cP |
| Control system | PLC + 7″ color touchscreen |
| Power supply | 110/220V AC, 50/60Hz, 400W |
| Dimensions (L×W×H) | 680 × 420 × 520 mm |
| Weight | ~35 kg |
Applications
- Pharmaceuticals (syrups, tinctures, oral solutions)
- Cosmetics & personal care (lotions, serums, shampoos)
- Food & beverage (flavors, edible oils, concentrates)
- Chemicals (detergents, lubricants, solvents)
- Electronics (coolants, fluxes, adhesives)
Why Choose This Machine?
- Tool‑free disassembly – All wetted parts are easily accessible for cleaning and sterilization (CIP/SIP optional).
- Material compatibility – Standard wetted materials (PTFE, ceramic, 316SS) resist aggressive media.
- Quiet operation – Magnetic coupling eliminates mechanical seals, reducing noise and heat.
- Quick setup – Pre‑calibrated and tested at factory; ready to run within 15 minutes of unboxing.
Optional Accessories
- Heated hopper / jacketed tank for high‑viscosity products
- Automatic container feed / capping / labeling modules
- Nitrogen purging for oxygen‑sensitive fills
- Data logging and Ethernet/IP connectivity
Ordering Information
Model: AFM‑4M‑D (desktop, 4‑head magnetic pump)
Delivery: 2–3 weeks after order confirmation
Warranty: 12 months (extended available)
For custom filling ranges, special materials, or turnkey integration, please contact our engineering team.
